1. Escriba para BT/SK/CAT/NMTB/HSK/NT/MT/R8 SHANK
2. Tolerancia de apertura: H5
3. Utilizado para remachar con agarre rígidamente
4. End Mill Chuck solía ser el titular de las herramientas de corte
5. Al colocar herramientas de corte, con un punto más alto alineado entre el plano de la pieza y los tornillos sólidos de muesca
6. Al ordenar, especifique el formulario: formulario A. AD, Formulario AD+B
7. 100% equilibrado a G6.3/15000 rpm
Detalles del producto
| HT-0083 | Adaptadores de fábricas finales | |||||
| Orden No. BTXD-L1 | L | D | D1 | L2 | L3 | WT (kg) |
| BT30X6-50 | 98.4 | 25 | 31.75 | 18 | 0.66 | |
| BT30X6-60 | 108.4 | 25 | 31.75 | 18 | 0.72 | |
| BT30X8-60 | 108.4 | 28 | 31.75 | 18 | 0.80 | |
| BT30X10-60 | 108.4 | 35 | 31.75 | 20 | 0.83 | |
| BT30X10-80 | 128.4 | 35 | 31.75 | 20 | 0.83 | |
| BT30X12-60 | 108.4 | 42 | 31.75 | 22.5 | 0.88 | |
| BT30X14-60 | 108.4 | 44 | 31.75 | 22.5 | 1.02 | |
| BT30X16-75 | 123.4 | 48 | 31.75 | 24 | 1.04 | |
| BT30X18-75 | 123.4 | 50 | 31.75 | 24 | 1.26 | |
| BT30X20-75 | 123.4 | 52 | 31.75 | 25 | 1.36 | |
| BT30X25-90 | 138.4 | 65 | 31.75 | 24 | 25 | 1.50 |
| BT40X6-50 | 115.4 | 25 | 44.45 | 18 | 0.96 | |
| BT40X6-60 | 125.4 | 25 | 44.45 | 18 | 0.98 | |
| BT40X8-50 | 115.4 | 28 | 44.45 | 18 | 1 | |
| BT40X10-63 | 128.4 | 35 | 44.45 | 20 | 1.08 | |
| BT40X12-63 | 128.4 | 42 | 44.45 | 22.5 | 1.2 | |
| BT40X14-63 | 128.4 | 44 | 44.45 | 22.5 | 1.22 | |
| BT40X16-63 | 128.4 | 48 | 44.45 | 24 | 1.24 | |
| BT40X16-70 | 135.4 | 48 | 44.45 | 24 | 1.3 | |
| BT40X18-63 | 128.4 | 50 | 44.45 | 24 | 1.36 | |
| BT40X20-63 | 128.4 | 52 | 44.45 | 25 | 1.36 | |
| BT40X20-70 | 135.4 | 52 | 44.45 | 25 | 2.1 | |
| BT40X25-90 | 155.4 | 65 | 44.45 | 24 | 25 | 2.07 |
| BT40X25-100 | 165.4 | 65 | 44.45 | 24 | 25 | 2.08 |
| BT40X32-100 | 165.4 | 72 | 44.45 | 24 | 28 | 2.25 |
| BT40X32-110 | 175.4 | 72 | 44.45 | 24 | 28 | 2.3 |
| BT40X40-120 | 185.4 | 90 | 44.45 | 30 | 32 | 2.5 |
| BT40X40-140 | 205.4 | 90 | 44.45 | 30 | 32 | 2.8 |
| BT50X6-63 | 164.8 | 25 | 69.85 | 18 | 3.2 | |
| BT50X8-63 | 164.8 | 28 | 69.85 | 18 | 3.23 | |
| BT50X10-63 | 164.8 | 35 | 69.85 | 20 | 3.24 | |
| BT50X12-80 | 181.8 | 42 | 69.85 | 22.5 | 3.36 | |
| BT50X16-80 | 181.8 | 48 | 69.85 | 24 | 3.48 | |
| BT50X20-80 | 181.8 | 52 | 69.85 | 25 | 3.52 | |
| BT50X25-100 | 201.8 | 65 | 69.85 | 24 | 25 | 4.28 |
| BT50X25-105 | 206.8 | 65 | 69.85 | 24 | 25 | 4.30 |
| BT50X25-150 | 251.8 | 65 | 69.85 | 24 | 25 | 4.35 |
| BT50X25-200 | 301.8 | 65 | 69.85 | 24 | 25 | 4.40 |
| BT50X32-100 | 201.8 | 72 | 69.85 | 24 | 28 | 4.44 |
| BT50X32-105 | 206.8 | 72 | 69.85 | 24 | 28 | 4.56 |
| BT50X40-115 | 216.8 | 90 | 69.85 | 30 | 32 | 4.58 |
| BT50X40-120 | 221.8 | 90 | 69.85 | 30 | 32 | 4.58 |
| BT50X50-150 | 251.8 | 100 | 69.85 | 35 | 35 | 4.90 |

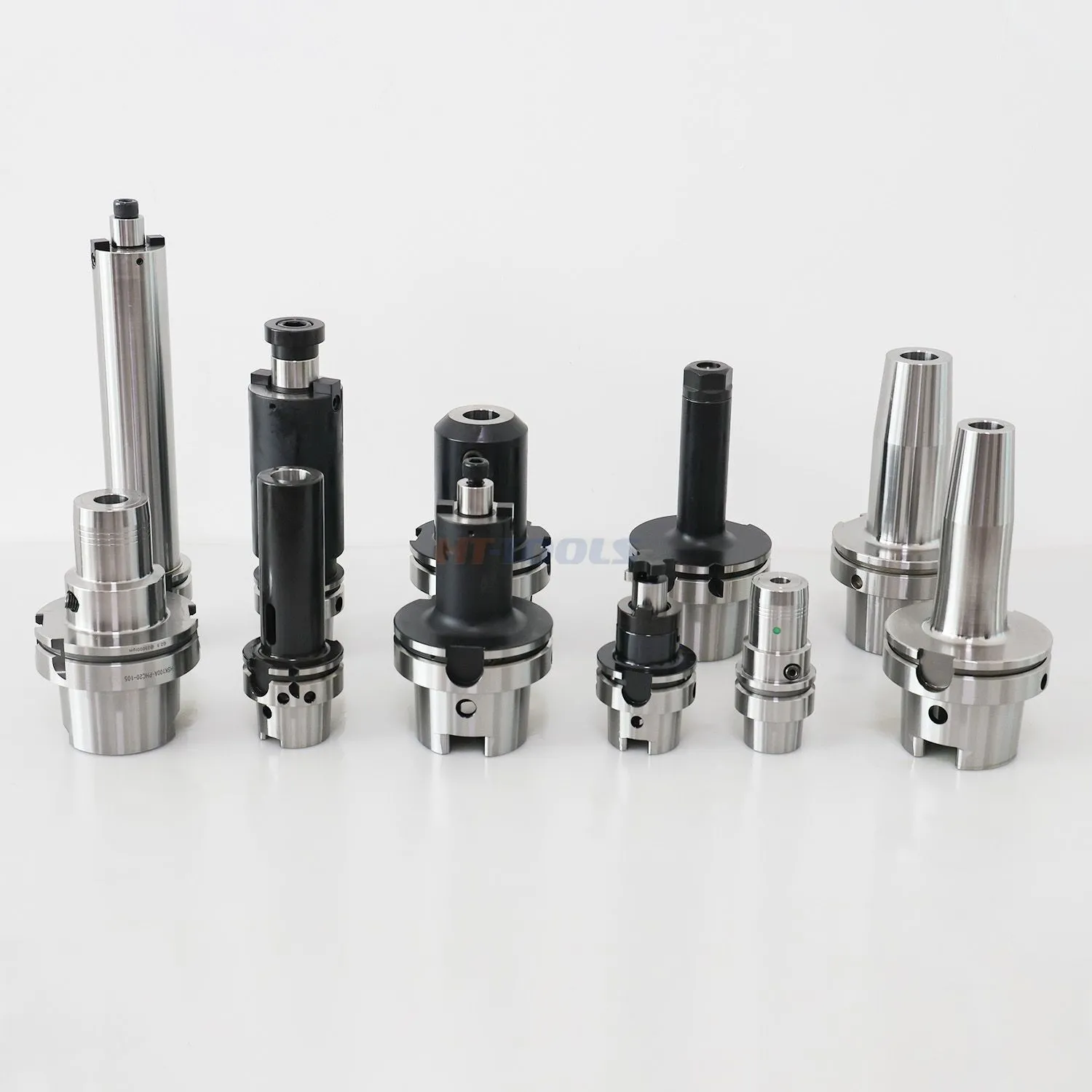

Otros Productos
Según es posible que sea posible proporcionar la empuñadura equilibrada, la precisión estándar es G6.3/12000RPM.La precisión precisa es G2.5/20000rpm.
