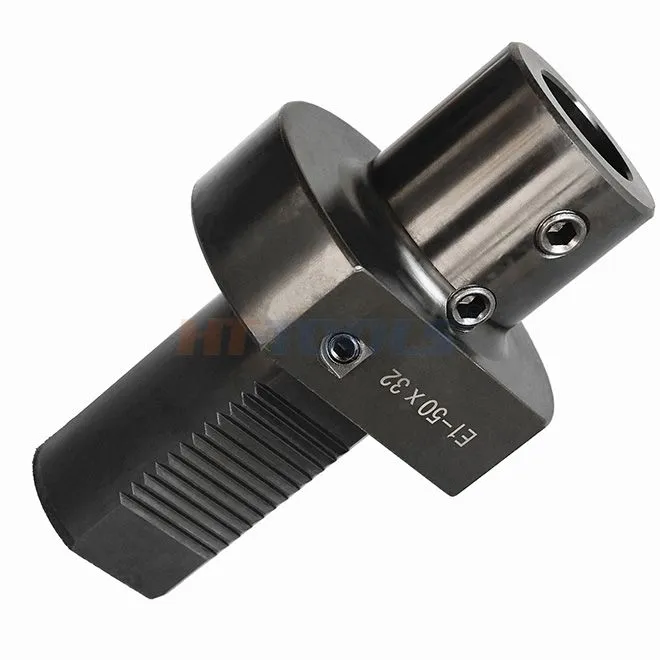

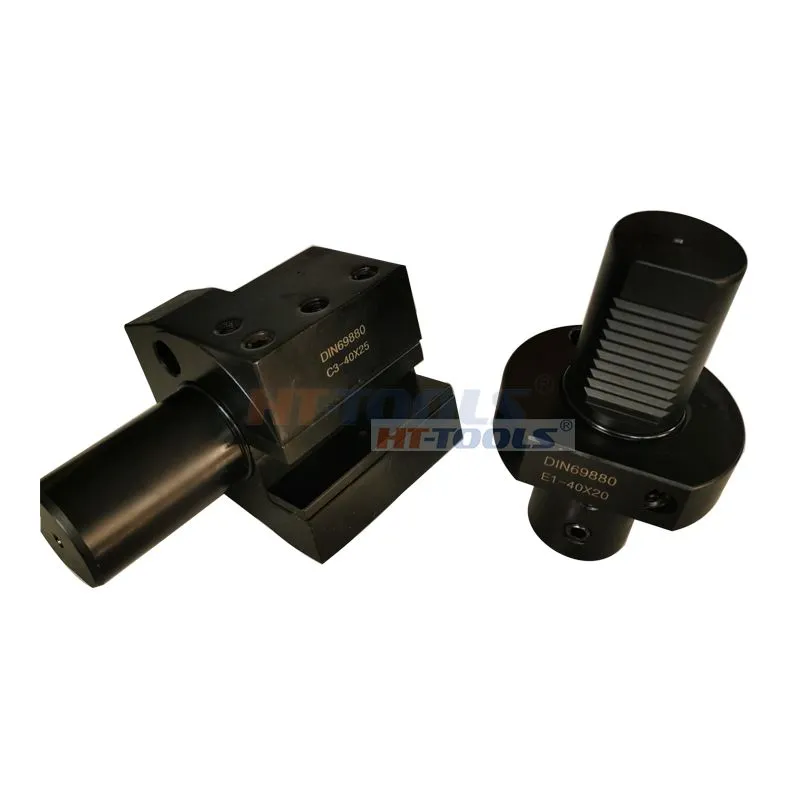

DIN69880-E1-TYPE-VDI-TOOL-TOOL
DIN69880-E1-TYPE-VDI-TOOL-TOOL
| Ordenar no | D1 | D2 | D3 | d4 | d5 | H1 | H2 | L1 | L2 | L3 | L4 | L5 | |
| E1-20x16 | 20 | 16 | 36 | M10X1 | 50 | - | 23 | 67 | 54 | 18 | 15 | 35 | |
| E1-20X20 | 20 | 20 | 40 | M10X1 | 50 | - | 23 | 67 | 54 | 18 | 15 | 35 | |
| E1-20X25 | 20 | 25 | 45 | M12x1 | 50 | - | 23 | 71 | 59 | 18 | 17 | 40 | |
| E1-30X10 | 30 | 10 | 30 | M6 | 68 | 28 | 30 | 60 | 48 | 22 | 12 | 28 | |
| E1-30X12 | 30 | 12 | 32 | M8x1 | 68 | 28 | 30 | 60 | 48 | 22 | 12 | 28 | |
| E1-30X16 | 30 | 16 | 36 | M10X1 | 68 | 28 | 30 | 67 | 54 | 22 | 15 | 35 | |
| E1-30X20 | 30 | 20 | 40 | M10X1 | 68 | 28 | 30 | 67 | 54 | 22 | 15 | 35 | |
| E1-30X25 | 30 | 25 | 45 | M12x1 | 68 | 28 | 30 | 71 | 59 | 22 | 17 | 40 | |
| E1-30X32 | 30 | 32 | 52 | M12x1 | 68 | 28 | 30 | 75 | 63 | 22 | 20 | 44 | |
| E1-40X12 | 40 | 12 | 32 | M8x1 | 83 | 32.5 | - | 60 | 48 | 22 | 12 | 28 | |
| E1-40X14 | 40 | 14 | 34 | M10X1 | 83 | 32.5 | - | 67 | 54 | 22 | 15 | 30 | |
| E1-40X16 | 40 | 16 | 36 | M1OX1 | 83 | 32.5 | - | 67 | 54 | 22 | 15 | 35 | |
| E1-40X20 | 40 | 20 | 40 | M10X1 | 83 | 32.5 | - | 67 | 54 | 22 | 15 | 35 | |
| E1-40X25 | 40 | 25 | 45 | M12x1 | 83 | 32.5 | - | 75 | 59 | 22 | 17 | 40 | |
| E1-40X32 | 40 | 32 | 52 | M12x1 | 83 | 32.5 | - | 75 | 63 | 22 | 20 | 44 | |
| E1-40X40 | 40 | 40 | 65 | M16x1 | 98 | 32.5 | - | 90 | 73 | 22 | 22 | 50 | |
| E1-50X20 | 50 | 20 | 40 | M10X1 | 98 | 35 | - | 67 | 54 | 30 | 15 | 35 | |
| E1-50X25 | 50 | 25 | 45 | M12x1 | 98 | 35 | - | 80 | 59 | 30 | 17 | 40 | |
| E1-50X32 | 50 | 32 | 52 | M12x1 | 98 | 35 | - | 80 | 63 | 30 | 20 | 44 | |
| E1-50x40 | 50 | 40 | 65 | M16x1 | 98 | 35 | - | 90 | 73 | 30 | 22 | 50 | |
| E1-50X50 | 50 | 50 | 75 | M16x1 | 98 | 35 | - | 100 | 83 | 30 | 24 | 60 | |
| E1-60X20 | 60 | 20 | 40 | M10X1 | 123 | 42.5 | - | 80 | 54 | 30 | 15 | 35 | |
| E1-60X25 | 60 | 25 | 45 | M12x1 | 123 | 42.5 | - | 80 | 59 | 30 | 17 | 40 | |
| E1-60X32 | 60 | 32 | 52 | M12x1 | 123 | 42.5 | - | 80 | 63 | 30 | 20 | 44 | |
| E1-60x40 | 60 | 40 | 65 | M16x1 | 123 | 42.5 | - | 90 | 73 | 30 | 22 | 50 | |
| E1-60X50 | 60 | 50 | 75 | M16x1 | 123 | 42.5 | - | 100 | 83 | 30 | 24 | 60 |
